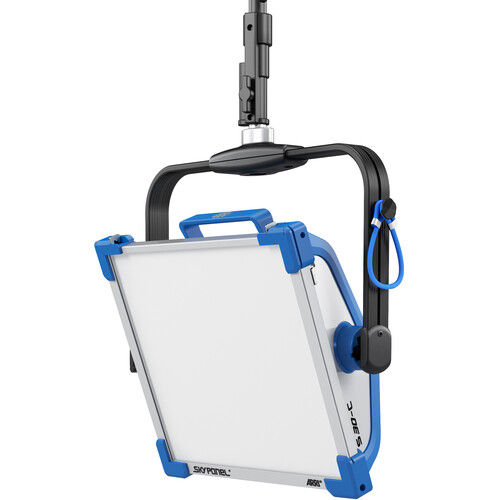

Arri Skypanel S30-C LED Kit Rental
$225.00Price
ARRI continues to broaden its LED line and reaffirm its commitment to accurate color rendering with the introduction of the blue/silver SkyPanel S30-C LED Softlight. Supported by a manual aluminum yoke, the panel's surface area measures 14 x 11.8", making it an ideal portable, on-the-go light source for mobile applications. Output is controlled via interchangeable thermoplastic diffusers that range from Standard to Lite to Heavy to soften the light and wrap its output around your subject and the SkyPanel S30-C outputs the equivalent of a 1000W tungsten soft light while drawing a maximum of only 240W.
Technical Specifications
Light Fixture
| Item Type | 1 x LED Light Panel |
| Included Filters | Diffusion |
| Photometrics | 3200K: 513 fc / 5526 Lux at 3.3' / 1 m* 57 fc / 614 Lux at 9.8' / 3 m 21 fc / 221 Lux at 16.4' / 5 m 5600K: 502 fc / 5409 Lux at 3.3' / 1 m* 56 fc / 601 Lux at 9.8' / 3 m 20 fc / 216 Lux at 16.4' / 5 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature | 2800 to 10,000K +/- 100K (with 200K Shift over Lifetime) |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 95 TLCI 91 |
| Cooling System | None |
| Dimming | Yes, Built-In Dimmer 0 to 100% (Continuous) |
| Expected Lamp Life | 50,000 Hours (L70) |
| Beam Angle | 110° |
| Front Accessory Mount | Proprietary |
Power & I/O
| Power Source | AC Power (Cable Included) Battery (Not Included) |
| Inputs/Outputs | Light Fixture 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output 1 x etherCON/RJ45 DMX Input 1 x USB-A Service/Remote Input 1 x XLR 3-Pin Power Input (48 VDC) 1 x XLR 4-Pin Battery Input (23 to 36 VDC) Power Supply/Controller 1 x powerCON TRUE1 Power Input 1 x powerCON TRUE1 Power Output 1 x XLR 3-Pin Power Output (48 VDC) |
| AC Input Power | 110 to 250 VAC, 50 / 60 Hz |
| DC Input Power | 48 VDC 23 to 36 VDC |
| Included Adapter / Cable | 1 x Edison Plug to powerCON TRUE1 Cable |
| Inline Switch | No |
| Power Pass-Thru | Yes |
| Power Consumption | 220 W |
Mounting
| Yoke Type | Manually-Operated Yoke (180° Tilt) |
| Fixture Mounting | 1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
Environmental
| Environmental Protection | Advertised as Dust Resistant *Manufacturer Testing: IP20 |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
General
| Display | None |
| Dimensions | 15 x 4.6 x 3.5" / 38.3 x 11.6 x 9 cm (Power Supply/Controller) 15.6 x 13.5 x 5.2" / 39.7 x 34.2 x 13.3 cm 22 x 20 x 5.2" / 55.9 x 50.7 x 13.3 cm (Fixture with Yoke) 14 x 11.8" / 35.5 x 30 cm (Fixture Panel) |
| Weight | 17.2 lb / 7.8 kg (Fixture with Yoke) 5.5 lb / 2.5 kg (Power Supply/Controller) |
