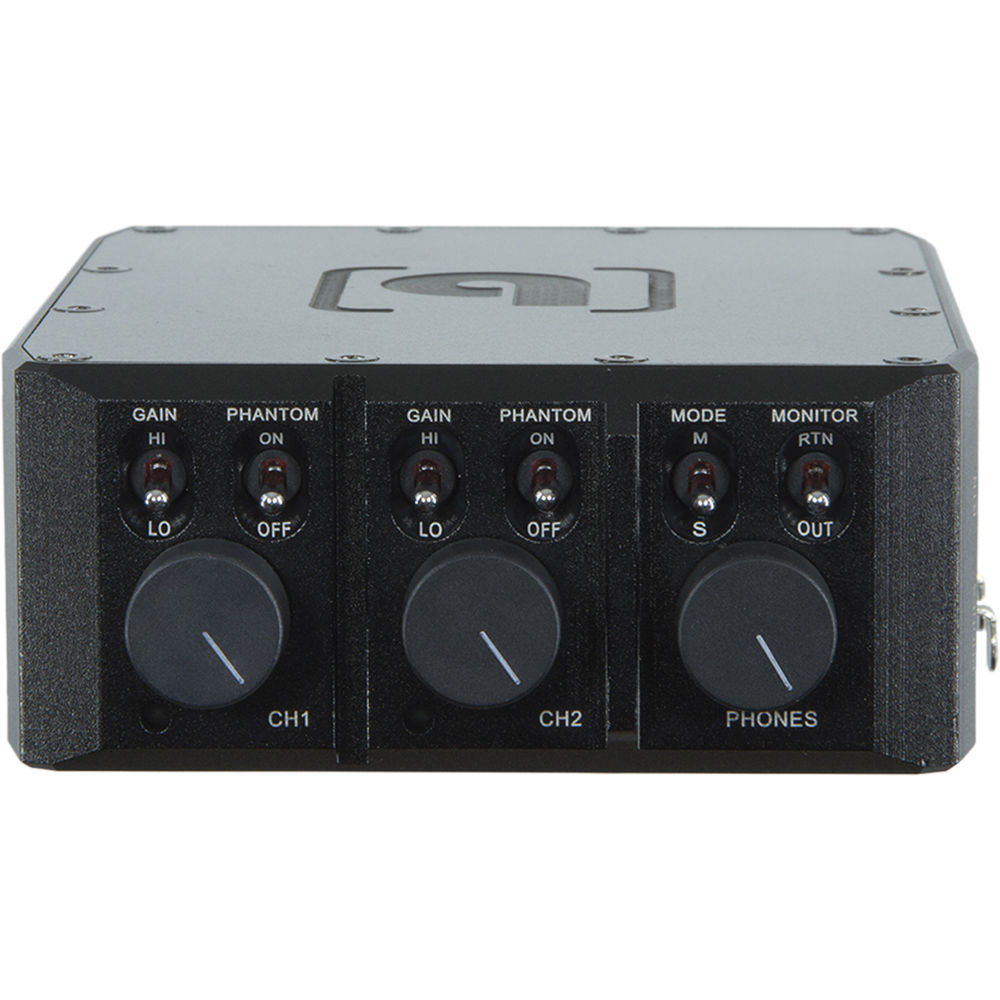

Beachtek DXA-ALEXA Preamplifier Kit for Alexa Mini Rental
$30.00Price
Designed primarily for the ALEXA Mini, but compatible with cameras such as the RED DSMC2, the Beachtek DXA-ALEXA is a low-noise preamplifier which connects directly to your camera, capturing audio through its transformer-balanced inputs and obviates the need for external syncing. The preamp itself sports a 100 dB dynamic range, and the construction of its inputs ensure galvanic isolation, as well as high common mode rejection in the face of common obstacles, such as electromagnetic interference.
Technical Specifications
| Connectors | Phones: 3.5 mm stereo headphone connector RTN: 3.5 mm stereo input for loopback from camera Mic In Channel 1: XLR balanced mic-level input for channel 1 Mic In Channel 2: XLR balanced mic-level input for channel 2 Line Out: 5-pin balanced output at +4 dBu Mic Out: 3.5 mm unbalanced auxiliary stereo output 2-pin LEMO 12 to 16 VDC power |
| Frequency Response | 20 Hz to 20 kHz (±1 dB) |
| Gain | Line Out: Low: 40 dB, High: 60 dB Mic Out: Low: 10 dB, High: 30 dB |
| Maximum Input Level | Low Gain: -15 dBu High Gain: -35 dBu |
| Output Clipping Level | Line Output: +25 dBu Mic Output: -5 dBu |
| Dynamic Range | 100 dB |
| THD+N | Low Gain: 0.012% (+4 dBu output, 1 kHz) High Gain: 0.06% (+4 dBu output, 1 kHz) |
| Channel Separation | Low Gain: 85 dB (+4 dBu output, 1 kHz) High Gain: 80 dB (+4 dBu output, 1 kHz) |
| Metering | Tri-Color LED: Green: -40 to 16 dBu Yellow: -16 to +4 dBu Red: Over +4 dBu |
| Powering | External DC input jack (12 to 16 V) Pin 1 = (-), Pin 2 = (+) |
| Dimensions | 5.0 x 3.8 x 1.6" / 126 x 96 x 40 mm |
| Weight | 0.8 lb / 374 g |
