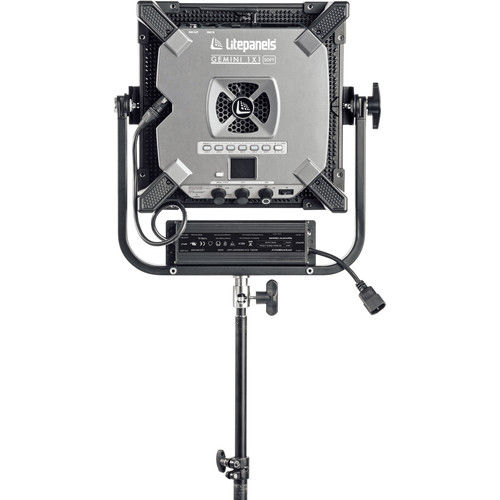

Litepanels Gemini 1x1 Soft LED Rental
Stability, rugged construction, flexibility, and control are hallmarks of the LitePanels Gemini 1x1 Soft RGB LED Light Panel with Standard Yoke and US Power Cord. The aluminum-constructed, 12.6 x 12.6 x 4.6" RGBWW fixture has multiple lighting modes including CCT, Hue, Saturation, Gel Presets, as well as an effects mode. The CCT color temperature control has six factory presets in increments from 2700 to 10,000K. There are also six presets for user-defined color temperature and plus/minus green control. The HSI Color mode allows you to adjust the hue, saturation, and intensity, while Gel mode permits your choice from a library of filters favored by filmmakers, and an effects mode provides nine different effects to work with. The light has a CRI/TLCI rating of 97 for daylight balance and 94 for tungsten balance, indicating an accurate rendition of color. The Gemini is dimmable from 100 to 0.1% without flicker or color shift, and settings and features are displayed on the rear LCD screen.
Technical Specifications
Light Fixture
| Item Type | 1 x LED Light Panel |
| Included Filters | Soft Diffusion |
| Included Storage Case | None |
| Lumens | Not Specified by Manufacturer |
| Photometrics | 95° at 3200K: 465 fc / 5013 Lux at 3.3' / 1 m* 51 fc / 557 Lux at / 3 m 95° at 5600K: 513 fc / 5526 Lux at 3.3' / 1 m* 57 fc / 614 Lux at 9.8' / 3 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature | 2700 to 10,000K |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 97 at 5600K TLCI 97 at 5600K CRI 94 at 3200K TLCI 94 at 3200K |
| Cooling System | Fan |
| Dimming | Yes, Built-In Dimmer 0.1 to 100% (Stepped) |
| Beam Angle | 95° |
| Built-In Flash | No |
| Front Accessory Mount | Proprietary |
Connectivity
| Wireless Remote Control Type | Bluetooth *Adapter Required (Not Included) Wi-Fi *Adapter Required (Not Included) |
| Mobile App Compatible | Yes, Adapter Required (Not Included): Android & iOS App Name: SmartLite Director *As of March, 2019: Check with manufacturer for the most up-to-date compatibility |
Power & I/O
| Power Source | AC to DC Adapter (Included) |
| Inputs/Outputs | 1 x XLR 3-Pin Power Input 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output 1 x RJ45 DMX Input 1 x RJ45 DMX Output 1 x Barrel / Coax Antenna Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 28 VDC |
| Included Adapter / Cable | 1 x Edison Plug to XLR 3-Pin AC to DC Adapter |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 200 W |
Mounting
| Yoke Type | Manually-Operated Yoke (180° Tilt) |
| Fixture Mounting | 1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
Environmental
| Environmental Protection | Advertised as Dust Resistant *Manufacturer Testing: IP20 |
General
| Display | LCD |
| Certifications | CE, cETLus, FCC *as per Manufacturer |
| Materials | Aluminum (Housing) |
| Dimensions | 1 x 1' / 30.48 x 30.48 cm (Fixture Panel) 12.6 x 12.6 x 4.6" / 32 x 32 x 11.7 cm (Fixture) |
| Weight | 11.71 lb / 5.31 kg |
